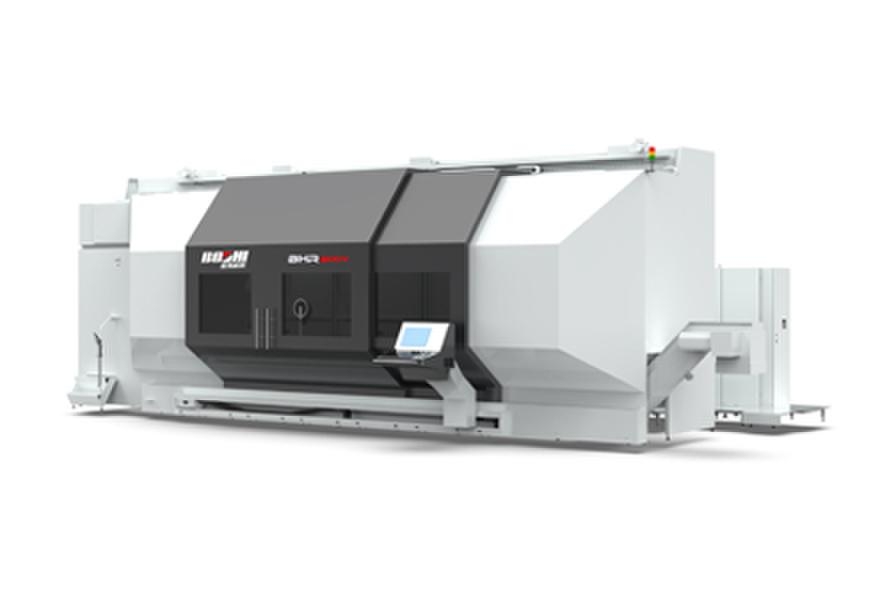

BHR800V series is a 5-axis horizontal turning milling compound machining center. The machine is equipped with X, Y, Z, B, C five axes, which can realize various turning, milling, boring, drilling, gear milling, grinding and other composite processing; It is especially suitable for high precision machining, deep hole machining and heavy parts processing with small straightness, cylindricity, parallelism and runout. The company is committed to the analysis of complex parts processing requirements, the development of relevant accessories for each user to provide customized effective overall solution.
|
Items |
BHR800V |
|
Turning diameter (mm) |
820 |
|
Distance between centers (mm) |
2000/3000/4000/5000/6000 |
|
Max. workpiece weight(kg) |
3500 |
|
Spindle |
|
|
Main motor power 100% (kW) |
22+22/27+27/30+30 |
|
Maximum chuck speed (rpm) |
2700/1680 |
|
maximum torque 100% (Nm) |
3340/5400 |
|
Standard chuck diameter (mm) |
315/400/500/630 |
|
Bearing diameter(front) (mm) |
160 |
|
Spindle thru-hole(mm) |
100 |
|
Spindle nose(DIN 55026) |
A11 |
|
C axis |
|
|
Max.speed (rpm) |
80 |
|
Max.output torque (Nm) |
4000 |
|
Milling head |
|
|
Milling motor power (kW) |
27/30 |
|
Speed(rpm) |
5000 |
|
Max.torque S1(100%) (Nm) |
261/291 |
|
Tool shank |
HSK-A63/CaptoC6 |
|
Bearing diameter (front)(mm) |
100 |
|
inner-cooling pressure (bar) |
70 |
|
B axis |
|
|
Max.speed(rpm) |
16 |
|
Max.torque (Nm) |
1780 |
|
Indexing Angle of rat tooth disc (º) |
2.5 |
|
Minimum indexing Angle (º) |
0.001 |
|
Angular range (º) |
-110/+90 |
|
X axis |
|
|
Rapid travel speed(m/min) |
40 |
|
Max.feed force (N) |
1305/2700 |
|
Traverse (mm) |
930 |
|
Y axis |
|
|
Rapid travel speed(m/min) |
40 |
|
Max.feed force (N) |
1450 |
|
Traverse (mm) |
400/550 |
|
Z axis |
|
|
Rapid travel speed(m/min) |
40 |
|
Max.feed force (N) |
1200/2880 |
|
Tailstock |
|
|
Quill diameter (mm) |
180 |
|
Quill traverse (mm) |
200 |
|
Tool capacity |
40/60/80/120 |
|
CNC control system |
Siemens 840D SL |
